3M 34383
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Hand-Tearable Foil Installation
- Vapor-Barrier Sealing Performance
- Broad -40 to 149 deg C Service
Product Description

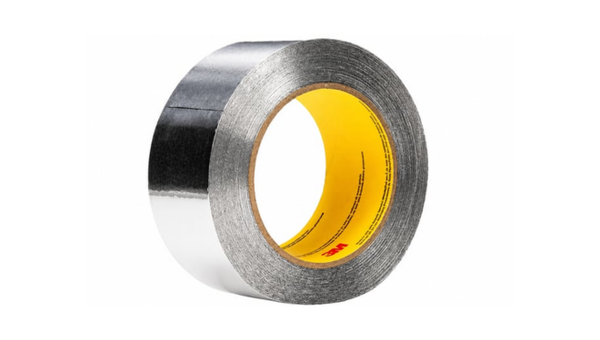

3M Aluminum Foil Tape 34383 is a silver, self-wound aluminum foil tape with an aggressive acrylic adhesive for sealing, patching, heat reflection, and vapor-barrier protection. Its 2.8 mil (0.07 mm) high-strength foil backing is malleable enough to follow irregular surfaces and tears by hand for tool-free application. The 4.5 mil (0.11 mm) total construction reflects heat and light and supports durable sealing against moisture, vapor, ultraviolet exposure, and harsh weather. Applied tape has typical peel and tensile data and long-term temperature resistance from -40 to 300 deg F (-40 to 149 deg C), supporting indoor and outdoor holding, splicing, patching, and sealing work.
Key features
- Malleable foil backing: The high-strength aluminum follows irregular shapes and tears by hand for installation.
- Vapor-barrier sealing: The foil/acrylic construction provides moisture-vapor protection and waterproof sealing.
- Broad long-term temperature range: Applied tape is rated from -40 to 300 deg F (-40 to 149 deg C) for days or weeks.
Applications
Suitable for heat reflection and dissipation, repairing tears, splicing thin foils, and general holding, patching, and sealing indoors or outdoors.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Mechanical Properties
Other Properties
Additional Information
As-supplied / before-processing properties
Physical values are representative or typical and are not specification limits.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | Silver | - | Typical |
| Adhesive | Acrylic | - | Pressure-sensitive |
| Backing | Aluminum foil | - | As supplied |
| Backing thickness | 0.07 (2.8) | mm (mil) | Typical; ASTM D3652 |
| Total tape thickness | 0.11 (4.5) | mm (mil) | Typical; ASTM D3652 |
| Shelf life | 24 | months | From manufacture; 16 to 27 deg C and 40 to 60% RH |
Final-state / after-processing properties
Performance values are typical; methods and conditions are shown in each row.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| 180 deg peel adhesion | 6.1 (55) | N/cm (oz/in) | Typical; ASTM D3330 at 23 deg C and 304 mm/min |
| Elongation at break | 11 | % | Typical; ASTM D3759 |
| Tensile strength | 52.5 (30) | N/cm (lb/in) | Typical; ASTM D3759 |
| Long-term temperature range | -40 to 149 (-40 to 300) | deg C (deg F) | Days or weeks |
