Name: 3M 471
Brand: 3M Netherlands B.V.
SKU: 3M 471

Main features

Conformable Irregular-Surface Marking
Clean-Removal Paint Masking
Vivid Abrasion-Resistant Identification

Product Description

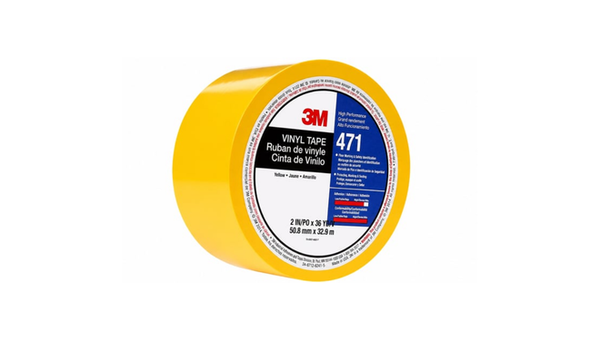

3M Vinyl Tape 471 is a conformable colored vinyl tape with rubber adhesive for lane and safety marking, color coding, paint masking, sealing, and temporary surface protection. The 0.14 mm tape stretches around curved, convex, and irregular surfaces while retaining its applied shape. Pigmented backings maintain vivid color under heavy abrasion, and the tape removes cleanly from many surfaces. Good solvent resistance and a choice of seven colors support plant marking and general process use. Apply the tape to clean, dry surfaces at 16 to 27 deg C for best results.

Key features

Conformable dead stretch: The vinyl backing follows curved and irregular surfaces without lifting or retracting.
Clean surface removal: Rubber adhesive provides immediate holding strength and clean removal from many surfaces.
Abrasion-resistant color: Pigmented backings retain vivid identification colors under heavy abrasion.

Applications

Applications include lane and safety marking, color coding, fine-line paint masking, temporary surface protection, container sealing, bundling, and decorating.

TDS, SDS & Technical Documents

Technical Specifications

General Properties

Color

Yellow, white, red, black, green, orange, blue

Other Properties

Storage Temperature

16 - 27 °C

Mechanical Properties

Elongation

130 %

Tensile Strength (Thin Film)

24.5 N/cm

Additional Information

Technical properties

As-supplied / before-processing properties

Property	Value	Unit	Method / condition
Color	Yellow, white, red, black, green, orange, blue		Pigmented backing
Adhesive type	Rubber		Pressure-sensitive
Backing thickness	0.1	mm	ASTM D3652; typical
Total tape thickness	0.14	mm	ASTM D3652; typical
Shelf life	18	months	Original packaging; 16 to 27 deg C and 40 to 60% RH; out of direct sunlight
