3M AF3028
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Expandable Core Splice Filling
- Low Sag Cure Behavior
- Wide Temperature Structural Performance
Product Description

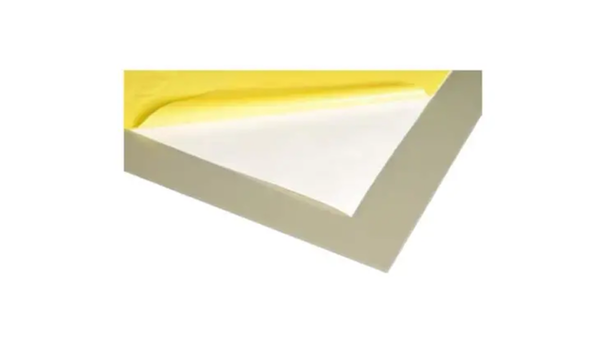

3M Scotch-Weld Structural Core Splice Film AF 3028 is a low-density, expandable epoxy film for filling mismatch areas, reinforcing honeycomb core, and creating core splices. The off-white unsupported film expands during cure to fill the joint while maintaining low sag and low volatile loss. AF 3028 supports cure temperatures from 121 to 176 deg C and provides structural performance from -55 to 176 deg C. Protective liners support cutting and placement before the honeycomb assembly is closed and cured under the selected process conditions.
Key features
- Expandable Core Splice Filling: The film expands during cure to fill mismatch areas and honeycomb splice joints.
- Low Sag Cure Behavior: Controlled flow helps the film remain positioned as the assembly heats.
- Wide Temperature Performance: Cured splice performance covers demanding aerospace temperature conditions.
Applications
Honeycomb core splicing, core reinforcement, mismatch filling, and aerospace sandwich-panel assembly.
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Base | Epoxy | - | As supplied |
| Color | Off white | - | As supplied |
| Form | Unsupported film | - | With protective liners |
| Nominal thickness | 50 +/- 5 | mil | Uncured film |
| Approximate areal weight | 0.26 | lb/ft2 | AF 3028 |
| Approximate expansion ratio | 1.9 | - | Uncured characterization |
| Approximate uncured density | 63 | lb/ft3 | As supplied |
After-processing / final-state properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Cured density | 34 | lb/ft3 | Free film; 60 min at 121 deg C; 4 to 6 deg F/min rise |
| Expansion ratio | 1.8 | - | Free film; 60 min at 121 deg C; 4 to 6 deg F/min rise |
| Sag | 0.8 | mm | 90 min at 121 deg C; vertical aluminum panel |
| Splice delamination strength | 490 | N | 5052 honeycomb core; 60 min at 121 deg C; tested at 24 deg C |
| Tube shear strength | 6.5 | MPa | Cure Cycle A; tested at 24 deg C |
