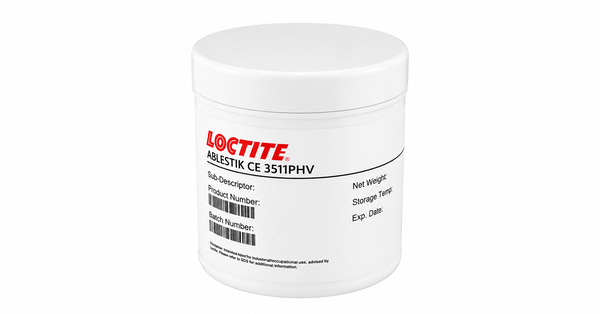

ABLESTIK CE 3511PHV
Harmonization Code : 3403.19 | Lubricating Preparations (With 70% or More Petroleum Oils) For Automotive and Other Uses
Main features
- Extended Dispensing Pot Life
- No-Bleed Conductive Placement
- Fast Hot-Plate Cure Option
Product Description
LOCTITE ABLESTIK CE 3511PHV is a one-part, silver-filled, electrically conductive epoxy adhesive for circuit assembly. The silver paste is designed for dispensing, has no bleed, and provides a pot life greater than 14 days at 18 to 25 deg C. Heat-cure options range from 60 minutes at 100 deg C to a hot-plate cure of 60 seconds or less at 180 to 190 deg C, although lower-temperature curing reduces electrical conductivity. After cure at 180 deg C, the typical volume resistivity is 5 x 10^-4 ohm cm. The cured adhesive has a typical glass transition temperature of 100 deg C and tensile lap shear strength of 12 N/mm^2.
Key features
- Long dispensing window: A pot life greater than 14 days at 18 to 25 deg C supports extended dispensing operations.
- No-bleed silver paste: The one-part paste is designed for dispensing and limits resin bleed during component placement.
- Flexible heat-cure schedule: Multiple oven and hot-plate options balance cure time and temperature, with lower-temperature cure reducing conductivity.
Applications
Applications include circuit assembly, die attach, component bonding, and attachment of heat-sensitive components.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Physical Properties
Additional Information
As-supplied / before-processing properties
Lower-temperature curing reduces the resulting electrical conductivity.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Silver paste | As supplied | |
| Filler type | Silver | As supplied | |
| Viscosity | 62,500 | mPa s | Brookfield TD; 10 rpm |
| Pot life | >14 | days | 18 to 25 deg C |
| Shelf life | 182 | days | -25 to -18 deg C |
| Cure schedule | 60 at 100; 45 at 120; 20 at 150; <=1 at 180 to 190 | minutes at deg C | Guideline oven or hot-plate cure options |
After-processing / final-state properties
Values are typical for cured LOCTITE ABLESTIK CE 3511PHV under the stated conditions.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Operating temperature | 150 | deg C | Product operating limit |
| Glass transition temperature | 100 | deg C | Typical cured material |
| Coefficient of linear thermal expansion | 124 | ppm/deg C | Typical cured material |
| Volume resistivity | 5 x 10^-4 | ohm cm | Cured at 180 deg C |
| Tensile lap shear strength | 12 | N/mm^2 | Typical cured material |
