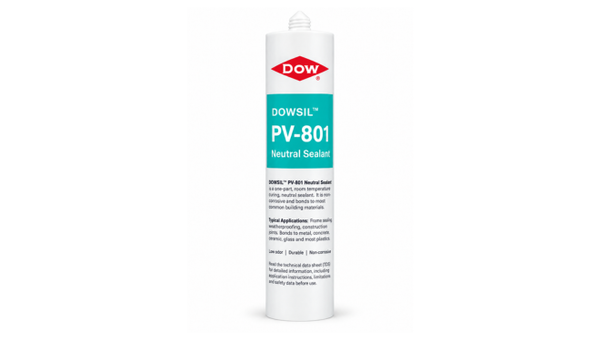

DOWSIL PV-801
Harmonization Code : 8001.20 | Unwrought tin: Tin alloys
Main features
- Non-Slump PV Frame Sealing
- 746% Elongation for Flexible Sealing
- Glass and Backsheet Junction-Box Bonding
Product Description
DOWSIL PV-801 Neutral Sealant is a one-part, neutral alkoxy-cure silicone adhesive and sealant for photovoltaic module assembly. The non-slump paste can be extruded at a typical rate of 197 g/min through a 3.18 mm nozzle at 0.62 MPa and skins over in about 10 to 15 minutes at room temperature and 50% relative humidity. After seven days under those conditions, the cured sealant has 746% elongation at break, 1.69 MPa tensile strength, and Shore A 28 hardness. Applications include photovoltaic frame sealing and junction-box bonding to glass and plastic backsheets.
Key features
- Non-slump application: Paste consistency supports controlled bead placement for module sealing and bonding.
- High cured elongation: Typical 746% elongation at break provides an elastic cured seal for photovoltaic assemblies.
- PV assembly fit: Used for module frame sealing and junction-box bonding to glass and plastic backsheets.
Applications / Suitable for
- Photovoltaic module frame sealing
- Junction-box bonding to glass
- Junction-box bonding to plastic backsheets
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical handling and application properties before cure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | White or bright white | CTM 0176 | |
| Consistency | Non-slump paste | As supplied | |
| Extrusion rate | 197 | g/min | 3.18 mm nozzle at 0.62 MPa; CTM 0364 / ASTM D2452 |
| Skin-over time | About 10 to 15 | min | Room temperature and 50% relative humidity |
After-processing / final-state properties
Typical cured properties after 7 days at 23 deg C and 50% relative humidity.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Specific gravity | 1.51 | At 23 deg C; CTM 0022 / ASTM D792 | |
| Durometer hardness | 28 | Shore A | CTM 0099 / ASTM D2240 |
| Tensile strength | 1.69 | MPa | CTM 0137A / ASTM D412 |
| Elongation at break | 746 | % | CTM 0137A / ASTM D412 |
| Modulus at 100% | 0.43 | MPa | CTM 0137A / ASTM D412 |
| Tear strength, Die B | 9.8 | kN/m | CTM 0159A / ASTM D624 |
| Dielectric strength | 13 | kV/mm | CTM 0114 / ASTM D149 |
| Volume resistivity | 2.1 x 10^14 | ohm cm | CTM 0249 / ASTM D257 |
