DOWSIL Q3-3384-1
Harmonization Code : 8001.20 | Unwrought tin: Tin alloys
Main features
- Visual 10:1 Mix Verification
- Fast Room-Temperature Handling
- Non-Self-Leveling Component Sealing
Product Description

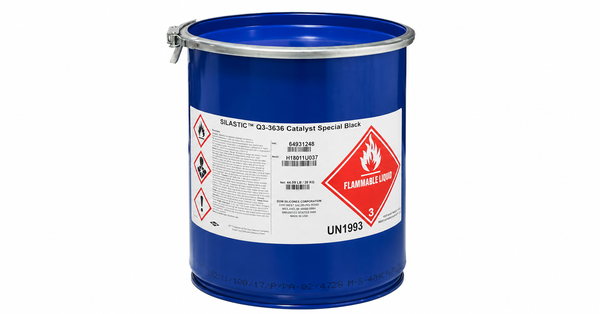

DOWSIL Q3-3384-1 Base with SILASTIC Q3-3636 Special Black Catalyst is a two-component, room-temperature-curing thixotropic silicone adhesive system for durable component sealing. The off-white base and black catalyst provide visual confirmation of mixing at the required 10:1 ratio by weight. Its non-self-leveling paste consistency supports controlled placement, while typical snap time is 8 to 11 minutes and tack-free time is 15 to 20 minutes. After seven days at room temperature, the cured adhesive has Shore A 33 hardness, 1.6 MPa tensile strength, and 250% elongation. The system uses a neutral alkoxy cure and is intended for adhesive sealing of components.
Key features
- Visual mix verification: Contrasting off-white base and black catalyst make incomplete mixing easier to identify.
- Fast room-temperature handling: Typical 8 to 11 minute snap time and 15 to 20 minute tack-free time support rapid handling.
- Thixotropic sealing paste: Non-self-leveling consistency supports controlled adhesive sealing of components.
Applications / Suitable for
- Durable adhesive sealing of components
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Additional Information
As-supplied / before-processing properties
Typical component and mixed-system properties before cure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Component appearance | Off-white/yellow base; black catalyst | CTM 0176 | |
| Base viscosity | 84,500 | mPa s | CTM 0050 |
| Base specific gravity | 1.2 | CTM 0097 | |
| Catalyst consistency | 180 to 460 | mm/10 | Penetration test |
| Catalyst specific gravity | 1.04 | CTM 0097 | |
| Mix ratio | 10:1 | Base to catalyst by weight | |
| Snap time | 8 to 11 | min | As mixed |
| Tack-free time | 15 to 20 | min | As mixed; CTM 0095 |
After-processing / final-state properties
Typical cured properties after 7 days at room temperature.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Durometer hardness | 33 | Shore A | CTM 0099 |
| Tensile strength | 1.6 | MPa | CTM 0137A |
| Elongation | 250 | % | CTM 0137A |
