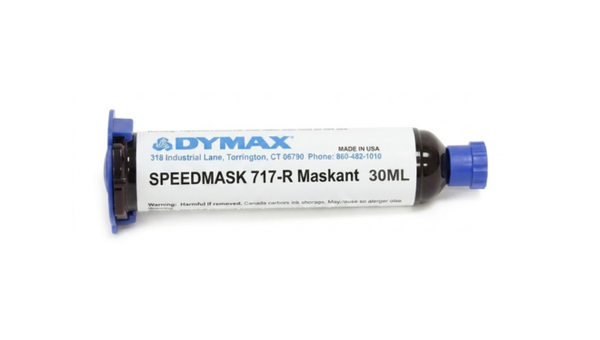

DYMAX 717-R
Harmonization Code : 3824.99.92.97 | Prepared binders for foundry molds or cores; chemical products and preparations of the chemical or allied industries (including those consisting of mixtures of natural products), not elsewhere specified or included: other : other : other
Main features
- High-Adhesion Process Retention
- Hot-Water-Assisted Peel Removal
- Visible Red Mask Placement
Product Description
Dymax SpeedMask 717-R Maskant is a red UV- and visible-light-curable gel maskant for plating, anodizing, aggressive grit blasting, shot peening, machining, and air plasma spray. The product provides high adhesion during process exposure and is removed with a hot-water-assisted peel sequence after use. Its supported application scope also includes protection of orthopedic implants where the exact process and biological-evaluation boundaries are maintained. The gel form supports controlled placement before cure, while the red appearance improves visual identification of masked areas. SpeedMask 717-R is a temporary process-protection material and is not intended to remain as a permanent coating.
Key features
- Red visual identification: The red gel makes the applied mask area easy to distinguish before and after cure.
- High-adhesion process hold: The cured mask is intended to remain attached through plating and aggressive mechanical processing.
- Hot-water-assisted release: The documented removal sequence combines hot water with peel removal after processing.
Applications / Suitable for
- Plating and anodizing
- Aggressive grit blasting, shot peening, and machining
- Air plasma spray and orthopedic implant protection
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Mechanical Properties
Chemical Properties
Physical Properties
Other Properties
Additional Information
As-supplied / before-processing properties
As-supplied characteristics for placement, identification, and light cure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Physical form | Gel maskant | As supplied | |
| Color | Red | Before cure | |
| Cure activation | UV and visible light | Applied maskant | |
| Placement behavior | Localized gel application | Before cure | |
| Process role | Temporary surface protection | Before plating, blasting, machining, or spray exposure |
After-processing / final-state properties
Cured-mask characteristics, removal, and stated evaluation scope.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Cured adhesion | High | During the protected process | |
| Removal method | Hot-water-assisted peel | After processing | |
| Process exposure scope | Plating; anodizing; blasting; peening; machining; plasma spray | Stated operations | |
| Biological evaluation scope | ISO 10993-5 cytotoxicity evaluation | Within the stated test scope | |
| Final application boundary | Temporary removable mask | Not a permanent coating |
