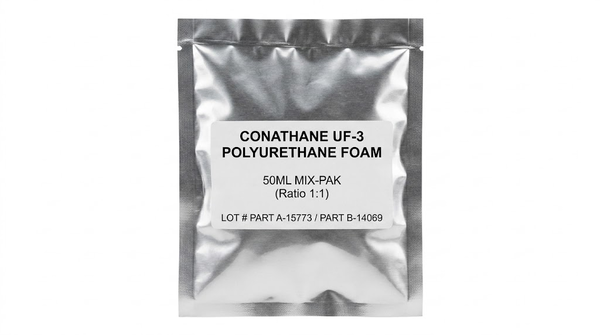

ELANTAS UF-3
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Room-Temperature Foam Cure
- Expanding Electronic Void Fill
- Assembly-Conforming Foam Packaging
Product Description
CONATHANE UF-3 Polyurethane Foam is a room-temperature-curing polyurethane foam for packaging electronic components and assemblies. After mixing, the material expands to fill available void spaces around protected hardware, creating a foam-format packaging layer within the assembly. This expansion behavior supports coverage of available cavities and void spaces during cure. UF-3 is suited to electronic packaging and void-filling operations where a two-component expanding polyurethane system is required to occupy open space and cure around components at room temperature.
Key features
- Expanding Void Fill: The polyurethane system expands during cure to occupy available spaces around hardware.
- Room-Temperature Cure: UF-3 develops its foam structure through an ambient cure process.
- Electronic Packaging Use: The product is intended for packaging components and complete electronic assemblies.
Applications / Suitable for
- Packaging electronic components
- Protecting electronic assemblies
- Filling void spaces around hardware
TDS, SDS & Technical Documents
Technical Specifications
Chemical Properties
General Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical liquid-component properties prior to mixing and foaming.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Specific Gravity | 1.22 | - | Part A, 25°C |
| Specific Gravity | 1.05 | - | Part B, 25°C |
| Brookfield Viscosity | 200 | cP | Part A, 25°C |
| Brookfield Viscosity | 7500 | cP | Part B, 25°C |
| Mix Ratio (A:B) | 100:90 | by weight | Recommended processing ratio |
| Shelf Life | 18 | months | Original unopened containers |
After-processing / final-state properties
Typical cured foam properties. Samples cured for 1 hour at 60°C.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Density | 7.6 | lb/ft³ | Free-blown foam |
| Compressive Strength | 180 | psi | 25°C |
| Closed Cells | 95 | % | Typical value |
| Water Absorption | 0.6 | % | 24-hour immersion at 25°C |
| Dielectric Strength | 60 | V/mil | Typical value |
| Thermal Conductivity (K-Factor) | 0.26 | BTU/hr·ft²·°F/in | Typical value |
