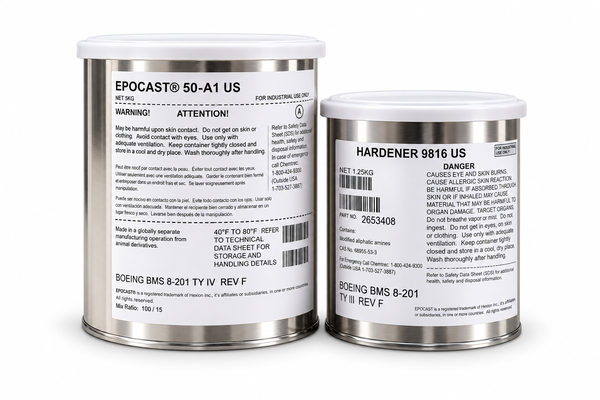

EPOCAST 50-A1/9816
Harmonization Code : 3214.10.00 | Putty and other mastics | Resin cements, caulking compounds and other mastics
Main features
- Extended 65-Minute Gel Time
- Solvent-Free Composite Laminating
- Room-Temperature or Heat Cure
Product Description
EPOCAST 50-A1 Resin / Hardener 9816 Epoxy Laminating System is an unfilled, solvent-free two-component epoxy for composite structure manufacture, repair, and filament winding. The amber system mixes at 100:14 by weight and has a 65-minute gel time at 25 deg C, providing a longer application window than the 946 hardener version. It can be cured for five days at 25 deg C or heat-cured for two hours at 77 to 93 deg C after room-temperature gel. Handling and machining are typically possible after 16 to 24 hours at room temperature.
Key features
- Extended working window: The mixed system has a 65-minute gel time at 25 deg C.
- Solvent-free laminating system: The unfilled epoxy is used for composite manufacture, repair, and filament winding.
- Room-temperature or heat cure: The system supports a five-day room-temperature cure or a two-hour elevated-temperature cure after gel.
Applications
- Composite structure manufacture
- Composite repair
- Filament winding
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Typical as-received and handling values for the resin, hardener, and mixed system.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | 50-A1 resin amber; 9816 hardener straw; mixed system amber | - | Visual |
| Viscosity | 50-A1 7,770; 9816 250; mixed 2,400 | cP | At 25 deg C |
| Mix ratio by weight | 100:14 | - | 50-A1 resin:Hardener 9816 |
| Gel time | 65 | min | At 25 deg C |
| Shelf life | 12 | months | Components unopened under the stated storage conditions |
| System type | Unfilled, solvent-free | - | Two-component epoxy laminating system |
After-processing / final-state properties
Cure and handling characteristics define the final cured-state preparation.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Room-temperature cure | 5 | days | At 25 deg C |
| Elevated-temperature cure | 2 | h | At 77 to 93 deg C after room-temperature gel |
| Handling and machining | 16 to 24 | h | At room temperature |
| Flammability | Self-extinguishing | - | Cured laminating system |
