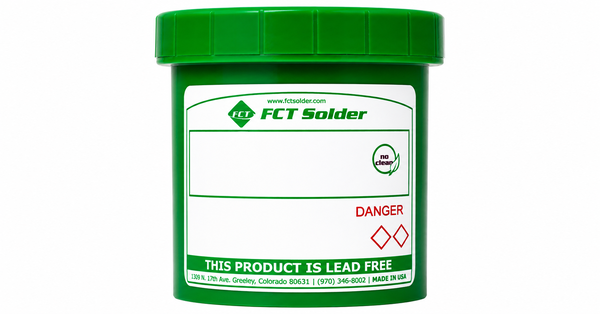

FCT NL932
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- Halide-Free ROL0 Flux
- Nine-Month Refrigerated Shelf Life
- SAC305 and SN100C Options
Product Description
FCT NL932 No-Clean Lead-Free Solder Paste is a halide-free no-clean lead-free solder paste for SMT printing and reflow in air or nitrogen. It is available with SAC305 and SN100C alloys using Type 3 or Type 4 powder, with Type 5 available by request. The NC32 flux system is supplied in jars, cartridges, syringes, and enclosed print-head formats. Refrigerated storage at 0 to 10 deg C provides a shelf life greater than nine months, while the working temperature range is 19 to 32 deg C and stencil life exceeds eight hours under the stated conditions.
Key features
- Halide-free no-clean flux: The NC32 flux supports no-clean processing with ROL0 classification and zero-halide test results.
- Extended refrigerated shelf life: Storage at 0 to 10 deg C provides more than nine months of shelf life.
- SAC305 and SN100C options: The paste is available with both lead-free alloy systems in multiple powder sizes.
Applications
- Lead-free SMT solder-paste printing
- Reflow in air or nitrogen
Technical Specifications
Other Properties
Additional Information
As-supplied / before-processing properties
Flux, alloy, powder, storage, working-range, and stencil-life data before reflow.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Flux system | NC32 | - | No-clean flux |
| Flux classification | ROL0 | - | J-STD-004A |
| Halide test result | 0.00 | % | Zero-halide result |
| Alloy options | SAC305 and SN100C | - | Standard product availability |
| Powder size | Type 3 or Type 4; Type 5 by request | - | Product configuration |
| Metal loading | 88.30 | % | SAC305 and SN100C, Type 3 and Type 4 |
| Refrigerated storage | 0 to 10 | deg C | Recommended storage range |
| Shelf life | > 9 | months | At 0 to 10 deg C |
| Room-temperature exposure | Up to 2 | weeks | Paste storage outside refrigeration |
| Working temperature range | 19 to 32 | deg C | Paste processing range |
| Stencil life | > 8 | h | At 20 to 25 deg C under the stated humidity condition |
