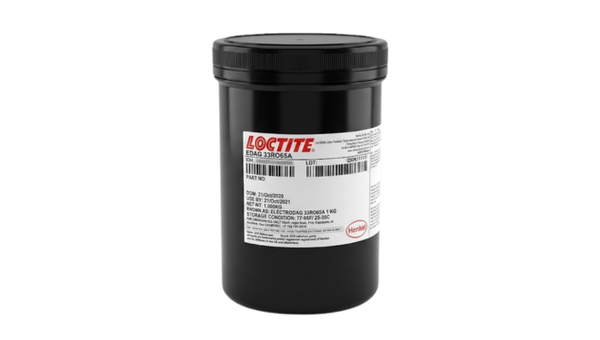

LOCTITE EDAG 33RO65A
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- High-Speed Conductive Printing
- Graphite-Polyimide Temperature Stability
- Low-Resistance Printed Conductivity
Product Description
LOCTITE EDAG 33RO65A is a black, graphite-filled polyimide conductive coating for high-speed printing. The heat-cured paste is formulated for adhesion to multiple substrates and produces a conductive printed layer with sheet resistance below 20 ohms/sq/mil under the stated cure. A staged schedule of 20 minutes at 107 deg C followed by 60 minutes at 177 to 204 deg C develops the polyimide coating for elevated-temperature stability. Applications include conductive printed coatings and ink features where this graphite/polyimide system is specified.
Key features
- Graphite-polyimide construction: The conductive coating combines graphite filler with a polyimide binder.
- High-speed printability: The paste is formulated for high-speed printing equipment.
- Staged heat cure: The documented two-stage cure develops a low-resistance conductive layer.
Applications
Applications include high-speed printed conductive coatings and ink features where EDAG 33RO65A is specified.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Additional Information
As-supplied properties
Typical uncured and processing values.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Black paste | As supplied | |
| Technology | Polyimide | Binder system | |
| Filler type | Graphite | Conductive filler | |
| Solids content | 22 | % | By weight |
| Density | 1.12 | kg/l | Uncured material |
| Theoretical coverage | 265 | sq ft/gal/mil | Uncured coating |
| Shelf life | 365 | days | At 2 to 8 deg C in original seal |
| Cure schedule | 20 minutes at 107 deg C plus 60 minutes at 177 to 204 deg C | Guideline heat cure |
